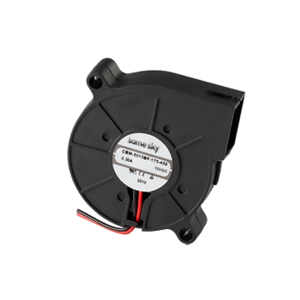

CBM-5015BF-175-459-22
12 V, 0.33 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, Dc Centrifugal Blower
Specifications
Type | Description | |
---|---|---|
Bearing Type | Ball |
|
Air Flow (CFM) | 4.75 |
|
Rated Speed (RPM) | 7500 |
|
Static Pressure (inH2O) | 1.24 |
|
Noise (dBA) | 45.9 |
|
Rated Voltage (Vdc) | 12 |
|
Max Input Current (mA) | 330 |
|
Tachometer Signal | Yes |
|
Rotation Detector | No |
|
PWM Control Signal | Yes |
|
Dimensions LxWxH (mm) | 51.6 x 51.2 x 15 |
|
Operating Temp Range (°C) | -10 ~ 70 |
|
Series | CBM-50BF |
|
