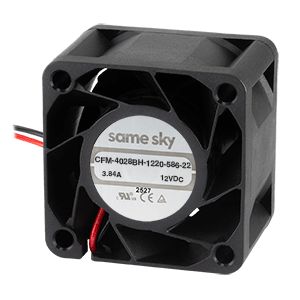

CFM-4028BH-1220-586-22
12 V, 830 mA, 40 x 40 x 28 mm, Ball Bearing, Dc Fan, Tachometer Signal, PWM Control Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 25.33 |
|
| Rated Speed (RPM) | 22000 |
|
| Static Pressure (inH2O) | 3.08 |
|
| Noise (dBA) | 58.6 |
|
| Voltage Rating (Vdc) | 12 |
|
| Max Input Current (mA) | 1000 |
|
| Tachometer Signal | Yes |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 40 x 40 x 28 |
|
| IP Rating | No IP Rating |
|
| Series | CFM-40BH |
|
| Rotation Detector | No |
|
