CMM-4030DB-26354-TR
Recommended Replacement

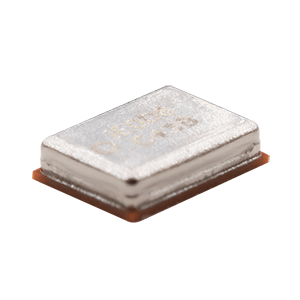

CMM-4030DB-26354L-TR
4 x 3 mm, Digital, Top Port, Surface Mount, -26 ±3 dB, MEMS Microphone
4.0 x 3.0 mm, Digital PDM, Bottom Port, Surface Mount, 2.0 Vdc, -26 ±3 dB, MEMS Microphone
Specifications
| Type | Description | |
|---|---|---|
| Output Type | Digital PDM |
|
| Directivity | Omnidirectional |
|
| Port Location | Bottom |
|
| Sensitivity (dB) | -26 |
|
| Sensitivity Tolerance (dB) | ±3 |
|
| Sensitivity Reduction (dB) | -0.5 |
|
| Operating Voltage (Vdc) | 1.6 ~ 3.6 |
|
| Signal : Noise Ratio (dBA) | 64 |
|
| Output Impedance (Ω) | 300 |
|
| Curr. Consumption (µA) | 540 |
|
| Operating Freq. (Hz) | 100 ~ 10000 |
|
| Termination | Surface Mount |
|
| Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 4 x 3 x 1.1 |
|
| Dimensions LxWxH (in) | 0.16 x 0.12 x 0.04 |
|
| IP Rating | No IP Rating |
|
