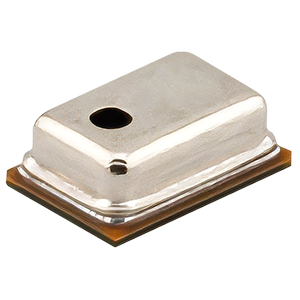

CMM-2718AT-423Z-TR
2.75 x 1.85 mm, Omnidirectional, Analog, Top Port, Surface Mount, 2 Vdc, -42 ±3 dB, MEMS Microphone
Specifications
| Type | Description | |
|---|---|---|
| Output Type | Analog |
|
| Directivity | Omnidirectional |
|
| Port Location | Top |
|
| Sensitivity Tolerance (dB) | ±3 |
|
| Sensitivity Reduction (dB) | -3 |
|
| Curr. Consumption (µA) | 130 |
|
| Operating Voltage (Vdc) | 2 |
|
| Operating Freq. (Hz) | 20 ~ 10000 |
|
| Signal : Noise Ratio (dBA) | 59 |
|
| Output Impedance (Ω) | 170 |
|
| Termination | Surface Mount |
|
| Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 2.75 x 1.85 x 0.95 |
|
| IP Rating | No IP Rating |
|
