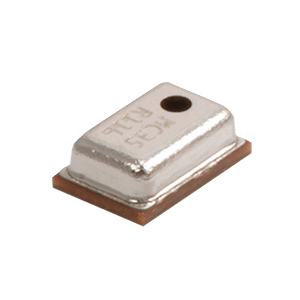

CMM-2718AT-42358-TR
2.75 x 1.85 mm, Analog, Top Port, Surface Mount, 1.8 Vdc, -42 ±3 dB, MEMS Microphone
Specifications
Type | Description | |
---|---|---|
Output Type | Analog |
|
Directivity | Omnidirectional |
|
Port Location | Top |
|
Sensitivity (dB) | -42 |
|
Sensitivity Tolerance (dB) | ±3 |
|
Sensitivity Reduction (dB) | 3 |
|
Curr. Consumption (µA) | 150 |
|
Operating Voltage (Vdc) | 1.5 ~ 3.6 |
|
Operating Freq. (Hz) | 100 ~ 10000 |
|
Output Impedance (Ω) | 200 |
|
Signal : Noise Ratio (dBA) | 58 |
|
Termination | Surface Mount |
|
Shape | Rectangular |
|
Dimensions LxWxH (in) | 0.1 x 0.07 x 0.03 |
|
Dimensions LxWxH (mm) | 2.75 x 1.85 x 0.95 |
|
