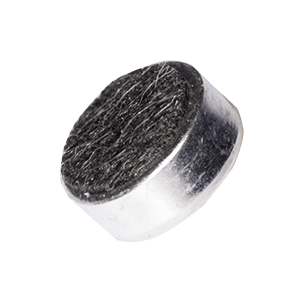

CMR-4015-44-SP
4.0 mm, Noise Cancelling, PCB Mount, 3.0 Vdc, Electret Condenser Microphone
Specifications
| Type | Description | |
|---|---|---|
| Output Type | Analog |
|
| Directivity | Noise Cancelling |
|
| Port Location | Top & Bottom |
|
| Sensitivity (dB) | -44 |
|
| Sensitivity Tolerance (dB) | ±3 |
|
| Sensitivity Reduction (dB) | -3 |
|
| Operating Voltage (Vdc) | 3 |
|
| Signal : Noise Ratio (dBA) | 55 |
|
| Curr. Consumption (µA) | 500 |
|
| Output Impedance (Ω) | 2200 |
|
| Operating Freq. (Hz) | 100 ~ 10000 |
|
| Termination | Solder Pads |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 4 x 4 x 1.5 |
|
| Dimensions LxWxH (in) | 0.157 x 0.157 x 0.059 |
|
| IP Rating | No IP Rating |
|
