3.5 MM Mid‑Mount Audio Connectors
Ideal for low‑profile applications
Low Profile, Audio Jack Connectors

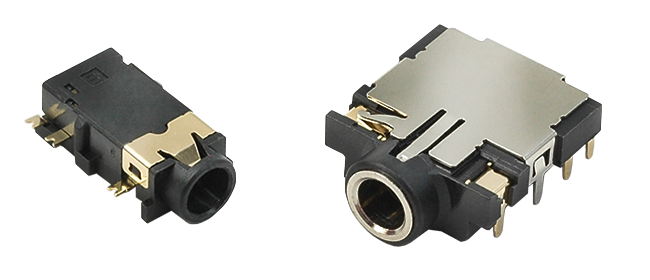

Same Sky's 3.5 mm mid-mount audio connectors are ideally suited for low profile design requirements in consumer electronics applications. The models feature internal switch configurations of 0, 1, 2, and normally open, with shielded versions available as well as 3, 4, and 5 conductor options.
Highlights
- Ideal for low-profile applications
- 0, 1, 2, normally open switch options
- Shielded versions for EMI suppression
- 3, 4, 5 conductor options

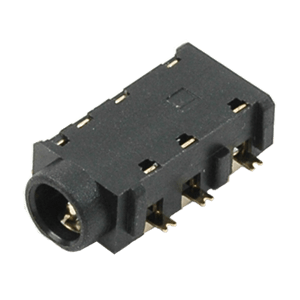

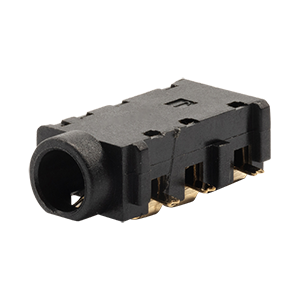

SJ-43614-SMT-TR
3.5 mm, Right Angle, Mid Mount (SMT), 4 Conductors, 0 Internal Switches, Audio Jack Connector |
SJ-43615RS-SMT-TR
3.5 mm, Right Angle, Mid Mount (SMT), 4 Conductors, 1 Internal Switch, Audio Jack Connector |
SJ-43615TS-SMT-TR
3.5 mm, Right Angle, Mid Mount (SMT), 4 Conductors, 1 Internal Switch, Audio Jack Connector |
SJ-43616-SMT-TR
3.5 mm, Right Angle, Mid Mount (SMT), 4 Conductors, 1 Internal Switch, Audio Jack Connector |
SJ-43617-SMT-TR
3.5 mm, Right Angle, Mid Mount (SMT), 4 Conductors, 1 Internal Switch, Audio Jack Connector |
SJ-3501-SMT-TR
3.5 mm, Stereo, Right Angle, Mid Mount (SMT), Dual Ring and Tip Contacts, 3 Conductors, 0 Internal Switches, Audio Jack Connector |
SJ-3502-SMT-TR
3.5 mm, Stereo, Right Angle, Mid Mount (SMT), Shielded, 3 Conductors, 0 Internal Switches, Audio Jack Connector |
SJ-3503-SMT-TR
3.5 mm, Stereo, Right Angle, Mid Mount (SMT), Ring and Tip Switches, 3 Conductors, 2 Internal Switches, Audio Jack Connector |
SJ-3506-SMT-TR
3.5 mm, Stereo, Right Angle, Mid Mount (SMT), Dual Switches, Shielded, 3 Conductors, Normally Open Switch, Audio Jack Connector |
SJ-43504-SMT-TR
3.5 mm, Stereo, Right Angle, Mid Mount (SMT), Shielded, 4 Conductors, 2 Internal Switches, Audio Jack Connector |
