Waterproof DC Power Jacks
IPX7 and IP67 Rated Models
IP Rated Power Jack Connectors
Carrying Ingress Protection (IP) ratings of IPX7 or IP67, Same Sky's waterproof dc power jack or receptacle connectors feature overmold or through hole mounting styles and horizontal orientations. Ideal for dealing with moisture and contaminants in harsh environments, these dc power connectors offer 0.8, 1.3, 2.0, and 2.5 mm inner diameters with 1, 3.5, 5, or 10 A current ratings. All models are shielded and reflow solder compatible, while further featuring 20, 24, or 30 Vdc voltage ratings and 2 or 3 conductors.
Highlights
- IPX7 or IP67 ratings
- Through hole or overmold mounting styles
- 0.8, 1.3, 2.0 & 2.5 mm inner diameters
- Shielded
- Reflow solder compatible

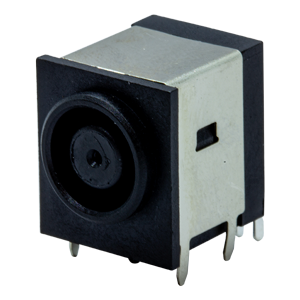

PJ-118-X7
0.8 x 5.0 x 7.5mm, 10 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector, IPX7 |
PJ-115DH-TR-X7
1.3 x 3.8 mm, 5.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector, IPX7 |
PR-1335D-X7
1.3 x 3.5 mm, 1.0 A, Horizontal, Overmold, Shielded, Dc Power Receptacle Connector, IPX7 |
PJ-117DH-TR-X7
1.3 x 3.8 mm, 5.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector, IPX7 |
PJ-001AH-67
2.0 x 6.3 mm, 5.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector, IP67 |
PJ-001BH-67
2.5 x 6.3 mm, 5.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector, IP67 |
PJ-001DH-67
1.3 x 3.8 mm, 3.5 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector, IP67 |
