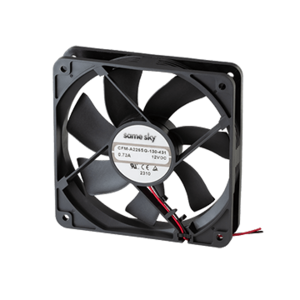

CFM-A225SG-115-281-22
12 V, 0.12 A, 120 x 120 x 25 mm, Tachometer Signal, PWM Control Signal, Dc Axial Fan
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Sleeve |
|
| Air Flow (CFM) | 51.75 |
|
| Air Flow (m³/min) | 1.465 |
|
| Rated Speed (RPM) | 1500 |
|
| Static Pressure (inH2O) | 0.08 |
|
| Noise (dBA) | 26.73 |
|
| Voltage Rating (Vdc) | 12 |
|
| Max Input Current (mA) | 120 |
|
| Rotation Detector | No |
|
| Tachometer Signal | Yes |
|
| PWM Control Signal | Yes |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Dimensions LxWxH (mm) | 120 x 120 x 25 |
|
| Series | CFM-A2SG |
|
