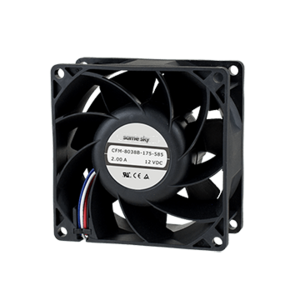

CFM-8032B-175-587-20
12 Vdc, 1400 mA, 80 x 80 x 32 mm, Ball Bearing, Dc Fan, Tachometer Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 91.4 |
|
| Rated Speed (RPM) | 7500 |
|
| Static Pressure (inH2O) | 1.33 |
|
| Noise (dBA) | 58.7 |
|
| Voltage Rating (Vdc) | 12 |
|
| Max Input Current (mA) | 1700 |
|
| Tachometer Signal | Yes |
|
| PWM Control Signal | No |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Dimensions LxWxH (mm) | 80 x 80 x 32 |
|
| IP Rating | No IP Rating |
|
| Series | CFM-80B |
|
| Rotation Detector | No |
|
