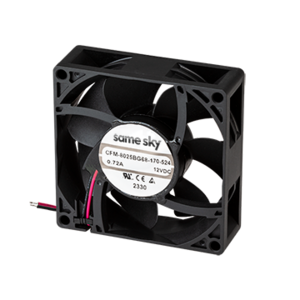

CFM-8025BG68-460-487-20
48 Vdc, 130 mA, 80 x 80 x 25 mm, Ball Bearing, Dc Fan, Tachometer Signal, IP68
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 63.64 |
|
| Air Flow (m³/min) | 1.802 |
|
| Rated Speed (RPM) | 6000 |
|
| Static Pressure (inH2O) | 0.63 |
|
| Noise (dBA) | 48.7 |
|
| Voltage Rating (Vdc) | 48 |
|
| Max Input Current (mA) | 200 |
|
| Tachometer Signal | Yes |
|
| PWM Control Signal | No |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Dimensions LxWxH (mm) | 80 x 80 x 25 |
|
| Series | CFM-80BG68 |
|
| IP Rating | IP68 |
|
| Rotation Detector | No |
|
