Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 95 |
|
| Rated Speed (RPM) | 9000 |
|
| Static Pressure (inH2O) | 1.33 |
|
| Noise (dBA) | 59.2 |
|
| Voltage Rating (Vdc) | 48 |
|
| Max Input Current (mA) | 480 |
|
| Tachometer Signal | No |
|
| PWM Control Signal | No |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Dimensions LxWxH (mm) | 80 x 80 x 25 |
|
| IP Rating | No IP Rating |
|

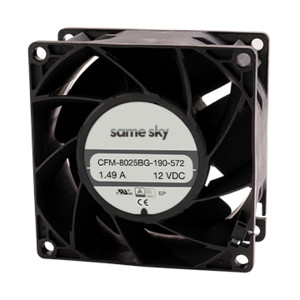

| Series | CFM-80BG |
|
| Rotation Detector | No |
|
