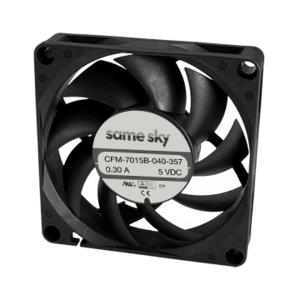

Features
| Dual ball bearing construction |
| 70 x 70 mm frame |
| Multiple speed options for different cooling needs |
| Tachometer signal available |
| Auto restart protection standard on all models |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Dimensions LxWxH (mm) | 70 x 70 x 25 |
|
| Air Flow (m³/min) | 0.733 |
|
| Series | CFM-70B |
|
| Rotation Detector | No |
|
| Air Flow (CFM) | 25.87 |
|
| Max Input Current (mA) | 60 |
|
| Noise (dBA) | 30.8 |
|
| PWM Control Signal | No |
|
| Rated Speed (RPM) | 3000 |
|
| Static Pressure (inH2O) | 0.12 |
|
| Tachometer Signal | No |
|
| Voltage Rating (Vdc) | 24 |
|
