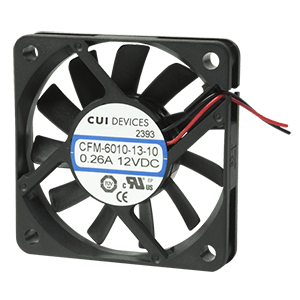

CFM-6010-13-10
Recommended Replacement

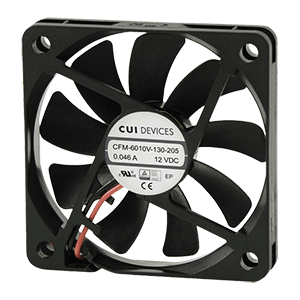

CFM-60V Series
60 mm x 60 mm Dc Axial Fan, omniCOOL™ Bearing
12 V, 0.20 A, 60 x 60 x 10.6 mm, Dc Fan
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 24.18 |
|
| Rated Speed (RPM) | 5500 |
|
| Static Pressure (inH2O) | 0.22 |
|
| Noise (dBA) | 41.4 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 260 |
|
| Tachometer Signal | No |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 60 x 60 x 10.6 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
