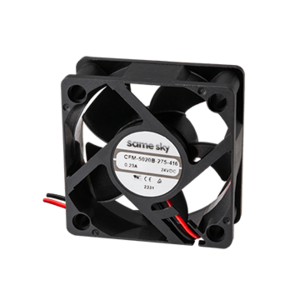

CFM-5020B-230-217-22
24 V, 30 mA, 50 x 50 x 20 mm, Tachometer Signal, PWM Control Signal, Dc Fan
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Rated Speed (RPM) | 3000 |
|
| Air Flow (CFM) | 9.09 |
|
| Static Pressure (inH2O) | 0.06 |
|
| Air Flow (m³/min) | 0.257 |
|
| Noise (dBA) | 21.7 |
|
| Max Input Current (mA) | 50 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Voltage Rating (Vdc) | 24 |
|
| Dimensions LxWxH (mm) | 50 x 50 x 20 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-50B |
|
| IP Rating | No IP Rating |
|
