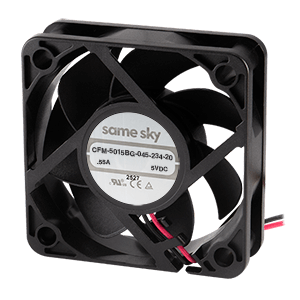

CFM-5015BG-045-234-20
5 V, 140 mA, 50 x 50 x 15 mm, Ball Bearing, Dc Fan, Tachometer Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 10.46 |
|
| Rated Speed (RPM) | 4500 |
|
| Static Pressure (inH2O) | 0.16 |
|
| Noise (dBA) | 23.43 |
|
| Voltage Rating (Vdc) | 5 |
|
| Max Input Current (mA) | 210 |
|
| Tachometer Signal | Yes |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 50 x 50 x 15 |
|
| IP Rating | No IP Rating |
|
| Series | CFM-50BG |
|
| Rotation Detector | No |
|
