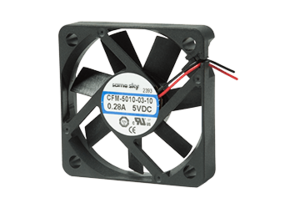

CFM-5010-03-22
5 V, 0.21 A, 50 x 50 x 10.6 mm, Dc Fan, Tachometer Signal, PWM Control Signal
Features
| High fan speed for greater air flow |
| Dual ball bearing construction |
| Auto restart protection standard on all models |
| 50 x 50 mm frame |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 16.07 |
|
| Rated Speed (RPM) | 6100 |
|
| Static Pressure (inH2O) | 0.2 |
|
| Noise (dBA) | 37.2 |
|
| Rated Voltage (Vdc) | 5 |
|
| Max Input Current (mA) | 280 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 50 x 50 x 10.6 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-50 |
|
