Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 39.42 |
|
| Air Flow (m³/min) | 1.116 |
|
| Rated Speed (RPM) | 23000 |
|
| Static Pressure (inH2O) | 5.17 |
|
| Noise (dBA) | 69.6 |
|
| Voltage Rating (Vdc) | 12 |
|
| Max Input Current (mA) | 3600 |
|
| Tachometer Signal | No |
|
| PWM Control Signal | No |
|
| Rotation Detector | No |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Dimensions LxWxH (mm) | 40 x 40 x 56 |
|
| IP Rating | No IP Rating |
|

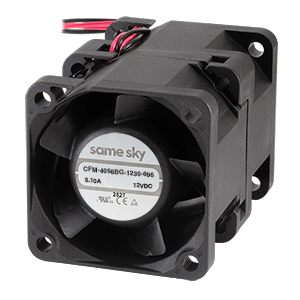

| Series | CFM-4056BG |
|
