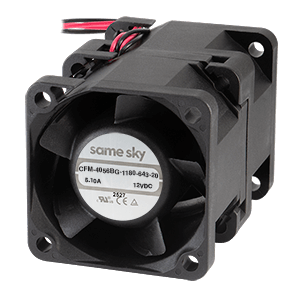

CFM-4056BG-1180-643-20
12 V, 1500 mA, 40 x 40 x 56 mm, Ball Bearing, Dc Fan, Tachometer Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 31.12 |
|
| Rated Speed (RPM) | 18000 |
|
| Static Pressure (inH2O) | 3.22 |
|
| Noise (dBA) | 64.3 |
|
| Voltage Rating (Vdc) | 12 |
|
| Max Input Current (mA) | 2000 |
|
| Tachometer Signal | Yes |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 40 x 40 x 56 |
|
| IP Rating | No IP Rating |
|
| Series | CFM-4056BG |
|
| Rotation Detector | No |
|
