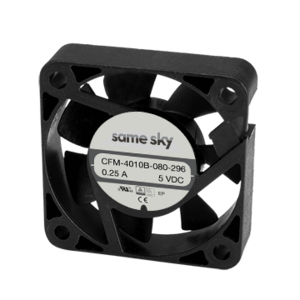

Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 5.02 |
|
| Rated Speed (RPM) | 4500 |
|
| Air Flow (m³/min) | 0.142 |
|
| Static Pressure (inH2O) | 0.1 |
|
| Noise (dBA) | 17.6 |
|
| Voltage Rating (Vdc) | 24 |
|
| Max Input Current (mA) | 50 |
|
| Rotation Detector | No |
|
| Tachometer Signal | No |
|
| PWM Control Signal | No |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Dimensions LxWxH (mm) | 40 x 40 x 15 |
|
| Series | CFM-40B |
|
| IP Rating | No IP Rating |
|
