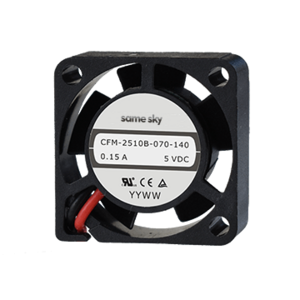

CFM-2510B-070-140-22
5 V, 120 mA, 25 x 25 x 10 mm, Dc Fan, Tachometer Signal, PWM Control Signal
Features
| 25 x 25 mm frame |
| Multiple speed options for different cooling needs |
| Auto restart protection standard on all models |
| Dual ball bearing construction |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Max Input Current (mA) | 120 |
|
| Dimensions LxWxH (mm) | 25 x 25 x 10 |
|
| Series | CFM-25B |
|
| Air Flow (CFM) | 1.35 |
|
| Noise (dBA) | 14.1 |
|
| PWM Control Signal | Yes |
|
| Rated Speed (RPM) | 7000 |
|
| Rotation Detector | No |
|
| Static Pressure (inH2O) | 0.06 |
|
| Tachometer Signal | Yes |
|
| Voltage Rating (Vdc) | 5 |
|
