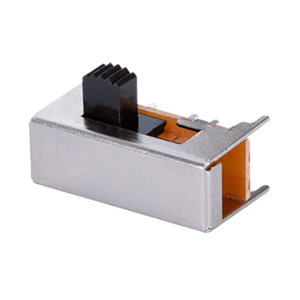

SLW-2414894-6A-RA-S-D
26 x 14.8 x 9 mm, 6 mm Raised Slide Actuator, Right Angle, Through Hole, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Actuator Level | Raised |
|
| Actuator Height (mm) | 6 |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | DP4T |
|
| Contact Timing | Shorting |
|
| Switch Function | On-On-On |
|
| Voltage Rating (Vdc) | 50 |
|
| Current Rating (mA) | 300 |
|
| Pitch (mm) | 3 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Horizontal |
|
| Dimensions LxWxH (in) | 1.024 x 0.583 x 0.31 |
|
| Dimensions LxWxH (mm) | 26 x 14.8 x 9 |
|
| Switch Type | Slide Switch |
|
