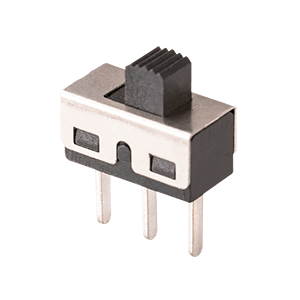

SLW-1276864-4A-D
12.7 x 6.8 x 6.4 mm, 2 mm Raised Slide Actuator, Vertical, Through Hole, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Slide Switch |
|
| Actuator Level | Raised |
|
| Actuator Height (mm) | 4 |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | SPDT |
|
| Switch Function | On-On |
|
| Contact Timing | Non-shorting |
|
| Pitch (mm) | 4.7 |
|
| Voltage Rating (Vdc) | 30 |
|
| Current Rating (mA) | 500 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Vertical |
|
| Operating Temp Range (°C) | -20 ~ 70 |
|
| Dimensions LxWxH (in) | 0.5 x 0.268 x 0.252 |
|
| Dimensions LxWxH (mm) | 12.7 x 6.8 x 6.4 |
|
