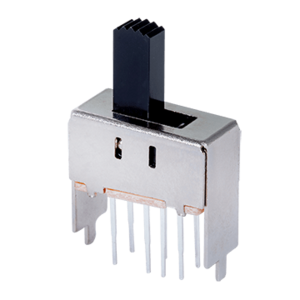

SLW-202194-12A-S-D
20 x 21 x 9.4 mm, 12 mm Raised Slide Actuator, Through Hole, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Slide Switch |
|
| Actuator Level | Raised |
|
| Actuator Height (mm) | 12 |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | DP3T |
|
| Switch Function | On-On-On |
|
| Contact Timing | Shorting |
|
| Pitch (mm) | 2.5 |
|
| Voltage Rating (Vdc) | 50 |
|
| Current Rating (mA) | 300 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Vertical |
|
| Operating Temp Range (°C) | -20 ~ 70 |
|
| Dimensions LxWxH (in) | 0.787 x 0.827 x 0.37 |
|
| Dimensions LxWxH (mm) | 20 x 21 x 9.4 |
|
