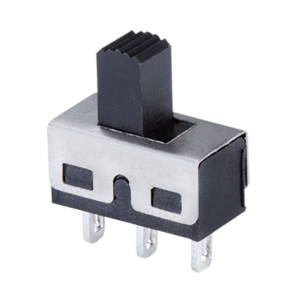

SLW-1966466-6A-N-D
19.6 x 6.4 x 6.6 mm, 6 mm Raised Slide Actuator, Through Hole, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Slide Switch |
|
| Actuator Level | Raised |
|
| Actuator Height (mm) | 6 |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | SPDT |
|
| Switch Function | On-On |
|
| Contact Timing | Non-shorting |
|
| Pitch (mm) | 4.7 |
|
| Voltage Rating (Vac) | 125 |
|
| Current Rating (mA) | 1500 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pins |
|
| Orientation | Vertical |
|
| Dimensions LxWxH (in) | 0.772 x 6.4 x 0.26 |
|
| Operating Temp Range (°C) | -20 ~ 70 |
|
| Dimensions LxWxH (mm) | 19.6 x 6.4 x 6.6 |
|
