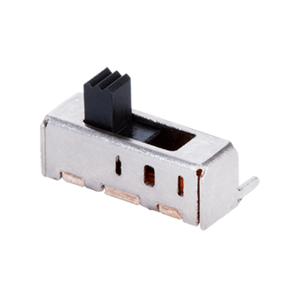

SLW-166261-4A-RA-N-D
16.5 x 6.2 x 6.1 mm, 4 mm Raised Slide Actuator, Right Angle, Through Hole, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Slide Switch |
|
| Actuator Level | Raised |
|
| Actuator Height (mm) | 4 |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | SP3T |
|
| Switch Function | On-On-On |
|
| Contact Timing | Non-shorting |
|
| Pitch (mm) | 3.2 |
|
| Voltage Rating (Vdc) | 50 |
|
| Current Rating (mA) | 300 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Horizontal |
|
| Operating Temp Range (°C) | -20 ~ 70 |
|
| Dimensions LxWxH (in) | 0.65 x 0.244 x 0.24 |
|
| Dimensions LxWxH (mm) | 16.5 x 6.2 x 6.1 |
|
