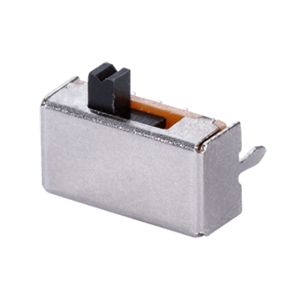

SLW-127777-2A-RA-S-D
12.7 x 7.7 x 7 mm, 2 mm Raised Slide Actuator, Right Angle, Through Hole, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Actuator Level | Raised |
|
| Actuator Height (mm) | 2 |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | DP3T |
|
| Switch Function | On-On-On |
|
| Contact Timing | Shorting |
|
| Pitch (mm) | 2 |
|
| Rated Voltage (Vdc) | 50 |
|
| Current Rating (mA) | 300 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Horizontal |
|
| Dimensions LxWxH (mm) | 12.7 x 7.7 x 7 |
|
| Dimensions LxWxH (in) | 0.5 x 7.7 x 0.276 |
|
