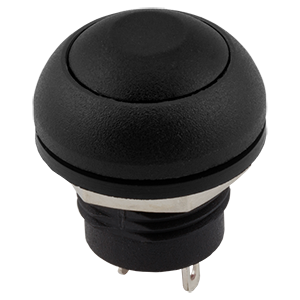

PB4-M-BK-D-67
SPST-NO, Off-(On), 12 mm, Panel Mount, Red Illuminated Power emblem, IP67, Push Button Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Push Button |
|
| Circuit | SPST-NO |
|
| Switch Function | Off-(On) |
|
| Voltage / Current Rating (Vac) | 250 Vac @ 0.2 A |
|
| Cap Style | No Cap |
|
| Mounting Style | Panel Mount |
|
| Termination | Solder Lug |
|
| Actuator Type | Round Button Domed |
|
| Actuator Marking | None |
|
| Push Button Color | Black |
|
| Operating Force (gf) | 300 ± 50 |
|
| Contact Resistance (mΩ) | 50 |
|
| Insulation Resistance (MΩ at 500 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 1000 |
|
| Washable | No |
|
| Illumination | No |
|
| Operating Temp Range (°C) | -20 ~ 85 |
|
| Panel Cutout Dimensions (mm) | 12 |
|
| Dimensions LxWxH (mm) | 11.85 x 11.85 x 18.7 |
|
| Dimensions LxWxH (in) | 0.47 x 0.47 x 0.74 |
|
| Series | PB4 |
|
| IP Rating | IP67 |
|
