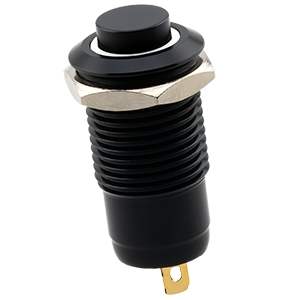

PBM5-L-WT3-R-BA-65
SPST-NO, Off-On, 12mm, Raised, Locking, Black Alloy, 3 V White Illuminated, Panel Mount, IP65, Anti-Vandal Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Anti-Vandal |
|
| Circuit | SPST |
|
| Switch Function | Off-On |
|
| Actuator Type | Round Button Raised |
|
| Voltage / Current Rating (Vac) | 250 Vac @ 0.4 A |
|
| Actuator Marking | None |
|
| Voltage / Current Rating (Vdc) | 36 Vdc @ 2 A |
|
| Housing Material | Black Alloy |
|
| Mounting Style | Panel Mount |
|
| Termination | Solder Lug |
|
| Illumination | Yes |
|
| Illumination Color | White |
|
| Panel Cutout Dimensions (mm) | 12 |
|
| Illumination Voltage (Vdc) | 3 |
|
| Operating Force (gf) | 450 ± 150 |
|
| Contact Resistance (mΩ) | 50 |
|
| Insulation Resistance (MΩ at 500 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 1000 |
|
| Washable | No |
|
| Operating Temp Range (°C) | -20 ~ 85 |
|
| Dimensions LxWxH (mm) | 13.9 x 13.9 x 23 |
|
| Dimensions LxWxH (in) | 0.547 x 0.547 x 0.905 |
|
| Series | PBM5 |
|
| IP Rating | IP65 |
|
