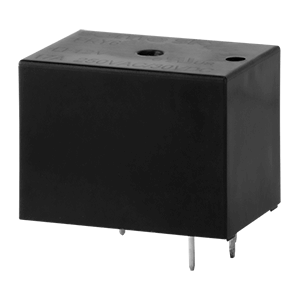

PRY6-24V-360-1C-EF
22 x 16 x 16.6 mm, 24 V, 17 A, SPDT (1 Form C), Class F, Epoxy Sealed, Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Coil Type | Non-Latching |
|
| Coil Voltage (V) | 24 |
|
| Nominal Coil Power (mW) | 360 |
|
| Contact Form | SPST (1 Form C) |
|
| Contact Rating | 17 @ 277 VAC |
|
| Max Switching Voltage (VDC) | 28 |
|
| Max Switching Voltage (VAC) | 277 |
|
| Max Switching Current (A) | 17 |
|
| Contact Resistance (mΩ) | 100 |
|
| Mounting Style | Through Hole |
|
| Termination | Pc Pins |
|
| Contact Material | Ag Alloy |
|
| Seal Rating | Fully |
|
| Coil Insulation Class | F |
|
| Dimensions LxWxH (mm) | 22 x 16 x 16.6 |
|
| Series | PRY6 |
|
| Relay Type | Power |
|
