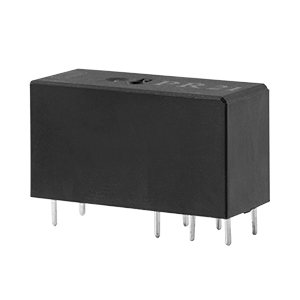

PR21-24V-400-2C

PR21-24V-400-2C
PR21-24V-400-2C Alternate View

PR21-24V-400-2C

29 x 12.6 x 15.8 mm, 24 V, 8 A, DPDT (2 Form C), Power Relay

Datasheet

Specifications

Type Description
Select
Coil Voltage (V) 24
Nominal Coil Power (mW) 400
Contact Form DPDT (2 Form C)
Contact Rating 4 A @ 250 VAC/30 VDC
Contact Resistance (mΩ) 100
Max Switching Voltage (VAC) 250
Max Switching Voltage (VDC) 30
Max Switching Current (A) 8
Seal Rating Flux
Coil Insulation Class B
Mounting Style Through Hole
Termination Pc Pins
Contact Material Ag Alloy
Dimensions LxWxH (mm) 29 x 12.6 x 15.8
Operating Temp Range (°C) -40 ~ 85
Series PR21
