PPM-3-3511-SG

PPM-3-3511-SG

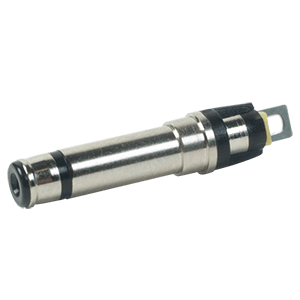

1.1 x 3.5 mm, 3 Conductor, Spring Type, Barrel Groove, Overmold Dc Power Plug Connector

Datasheet

Specifications

Type Description
Select
Connector Type Plug
Inner Diameter (mm) 1.1
Outer Diameter (mm) 3.5
Insertion Depth/Length (mm) 12
Mounting Style Cable - Overmold
Voltage Rating (Vdc) 24
Current Rating (A) 5
Number of Conductors 3
Internal Switch(es) 0
Shielding No

Technical Docs

Datasheet 3D Model

Other Resources

Connector Mating Guide
