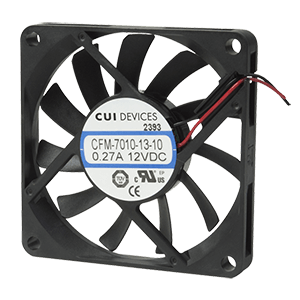

CFM-7010-13-22
12 V, 0.20 A, 70 x 70 x 10.6 mm, Dc Fan, Tachometer Signal, PWM Control Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 31.11 |
|
| Rated Speed (RPM) | 4400 |
|
| Static Pressure (inH2O) | 0.16 |
|
| Noise (dBA) | 40.6 |
|
| Voltage Rating (Vdc) | 12 |
|
| Max Input Current (mA) | 270 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 70 x 70 x 10.6 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
