The Encoder Revolution Is Here
Rugged, Flexible & Efficient Models With Capacitive Sensing Technology

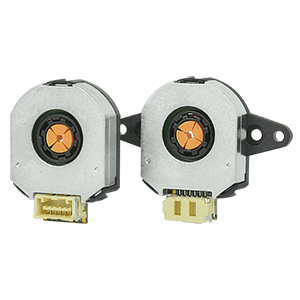

AMT Modular Encoders
Utilizing capacitive sensing technology, Same Sky's incremental, absolute, and commutation AMT modular encoders offer a highly ruggedized solution without sacrificing accuracy. Supporting up to 22 programmable resolutions and shaft sizes from 1 mm to 5/8 in, the AMT series gives engineers increased flexibility during prototyping without procuring additional units and purchasing managers the ability to greatly reduce SKU count in production.
Rugged
- Operating temp range from -40°C up to 125°C
- Resilient to dust, dirt and oil
- No need for additional covers, lids or seals to prevent exposure
- Suited for vacuum and high pressure conditions
Flexible
- Wide range of programmable resolutions
- Sleeve bore options from 1 ~ 15.875 mm (5/8 in)
- Simple assembly
- Variety of line driver and connector options
Efficient
- Low current draw
- Low power required for rotation thanks to low mass internal rotor
- Compact package reduces overall design size
- Alignment via One Touch Zero™ ensures precise alignment with motor for optimum performance
|
|
AMT112Q-V
28 mm, 48 ~ 4096 PPR, Incremental, Line Driver Output, Radial Orientation, Capacitive Modular Encoder Kit |
AMT112S-V
28 mm, 48 ~ 4096 PPR, Incremental, TTL Voltage Output, Radial Orientation, Capacitive Modular Encoder Kit |
AMT113Q-V
28 mm, 48 ~ 4096 PPR, Incremental, Line Driver Output, Axial Orientation, Capacitive Modular Encoder Kit |
AMT113S-V
28 mm, 48 ~ 4096 PPR, Incremental, TTL Voltage Output, Axial Orientation, Capacitive Modular Encoder Kit |
|
|
AMT312C-V
28 mm, 48 ~ 4096 PPR, Commutation, Commutation Line Driver Output, Radial Orientation, Capacitive Modular Encoder Kit |
AMT312D-V
28 mm, 48 ~ 4096 PPR, Commutation, Line Driver Output, Radial Orientation, Capacitive Modular Encoder Kit |
AMT312Q-V
28 mm, 48 ~ 4096 PPR, Commutation, Quadrature Line Driver Output, Radial Orientation, Capacitive Modular Encoder Kit |
AMT312S-V
28 mm, 48 ~ 4096 PPR, Commutation, TTL Voltage Output, Radial Orientation, Capacitive Modular Encoder Kit |
AMT313Q-V
28 mm, 48 ~ 4096 PPR, Commutation, Quadrature Line Driver Output, Axial Orientation, Capacitive Modular Encoder Kit |

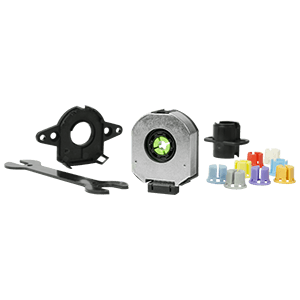

AMT313S-V
28 mm, 48 ~ 4096 PPR, Commutation, TTL Voltage Output, Axial Orientation, Capacitive Modular Encoder Kit |
AMT10 Series
28 mm, 48 ~ 2048 PPR, Incremental, Capacitive Modular Encoder |
AMT10E Series
28 mm, 120 ~ 5120 PPR, Incremental, Capacitive Modular Encoder |
AMT11 Series
28 mm, 48 ~ 4096 PPR, Incremental, Capacitive Modular Encoder |
AMT11A Series
28 mm, 96 ~ 4096 PPR, Incremental, Capacitive Modular Encoder |
AMT12 Series
22 mm, 96 ~ 4096 PPR, Incremental, Capacitive Modular Encoder |
AMT13 Series
42 mm, 48 ~ 4096 PPR, Incremental, Capacitive Modular Encoder |
AMT13A Series
42 mm, 96 ~ 4096 PPR, Incremental, Capacitive Modular Encoder |
AMT20 Series
28 mm, 12 Bit, Single-Turn, Absolute, SPI Interface, Capacitive Modular Encoder |
AMT21 Series
28 mm, 12 or 14 Bit, Single-Turn or Multi-Turn, Absolute, RS-485 Interface, Capacitive Modular Encoder |
AMT22 Series
28 mm, 12 or 14 Bit, Single-Turn or Multi-Turn, Absolute, SPI Interface, Capacitive Modular Encoder |
AMT23 Series
28 mm, 12 or 14 Bit, Single-Turn, Absolute, SSI Interface, Capacitive Modular Encoder |
AMT24 Series
42 mm, 12 or 14 Bit, Single-Turn or Multi-Turn, Absolute, RS-485 Interface, Capacitive Modular Encoder |
AMT25 Series
42 mm, 12 or 14 Bit, Single-Turn or Multi-Turn, Absolute, SPI Interface, Capacitive Modular Encoder |
AMT31 Series
28 mm, 48 ~ 4096 PPR, Commutation, Capacitive Modular Encoder |
AMT33 Series
42 mm, 48 ~ 4096 PPR, Commutation, Capacitive Modular Encoder |
