AMT112Q-V
28 mm, 48 ~ 4096 PPR, Incremental, Line Driver Output, Radial Orientation, Capacitive Modular Encoder Kit

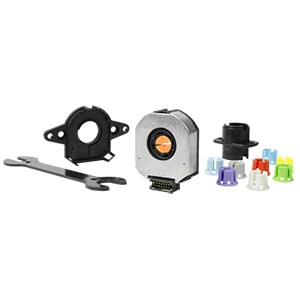

The AMT11-V all-in-one incremental encoder kit offers 396 configurations in one package. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and two baseplates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with a selectable resolution range of 48 to 4096 PPR via Same Sky's AMT Viewpoint GUI, the AMT11-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.
Features
| High accuracy |
| Resilient to dust, dirt and oil |
| Low current draw |
| Multiple mounting options |
| -40 to +125°C temperature range |
| 22 programmable resolutions up to 4096 PPR |
| 396 encoders in one package |
| Simple assembly |
| 9 different shaft sizes from 2 mm to 8 mm |
