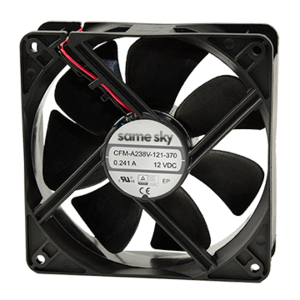

CFM-A238V-226-440-20
24 V, 258 mA, 120 x 120 x 38 mm, Dc Fan, Tachometer Signal
The CFM-120V series is a family of 120 x 120 mm dc axial fans featuring airflows up to 138 CFM and coming standard with auto restart protection on all models. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
| omniCOOL™ bearing system |
| 120 x 120 mm frame |
| Multiple speed options for different cooling needs |
| Auto restart protection standard on all models |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 116 |
|
| Rated Speed (RPM) | 2600 |
|
| Static Pressure (inH2O) | 0.26 |
|
| Noise (dBA) | 44 |
|
| Voltage Rating (Vdc) | 24 |
|
| Max Input Current (mA) | 258 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 120 x 120 x 38 |
|
| Series | CFM-120V |
|
