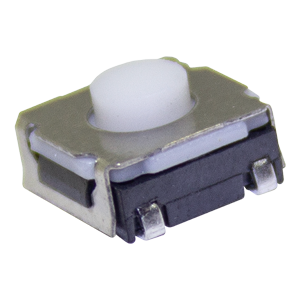

TS44-6262-34-WT-350-SMT-TR-67
6.2 x 6.2 mm, 3.4 mm Actuator Height Off PCB, 350 gf, White, Surface Mount, SPST, IP67, Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Tactile |
|
| Circuit | SPST |
|
| Actuator Height Off PCB (mm) | 3.4 |
|
| Actuator Travel (mm) | 0.2 |
|
| Operating Force (gf) | 350 ± 80 |
|
| Voltage Rating (Vdc) | 12 |
|
| Current Rating (mA) | 50 |
|
| Contact Resistance (mΩ) | 100 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Mounting Style | Surface Mount |
|
| Termination | Gull Wing |
|
| Orientation | Vertical |
|
| Lifecycles | 100000 |
|
| Illumination | No |
|
| Operating Temp. (°C) | -40 ~ 85 |
|
| IP Rating | IP67 |
|
| Series | TS44 |
|
