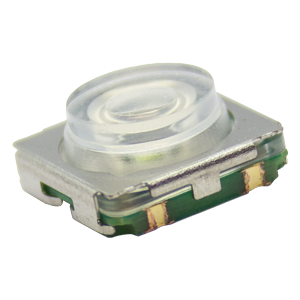

TS38-9898-39-CL-450-SMT-TR
9.85 x 9.85 mm, 3.95 mm Actuator Height Off PCB, 450 gf, Clear, Surface Mount, SPST, Illuminated, Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Tactile |
|
| Circuit | SPST |
|
| Actuator Height Off PCB (mm) | 3.95 |
|
| Actuator Travel (mm) | 0.8 |
|
| Operating Force (gf) | 450 ± 70 |
|
| Voltage Rating (Vdc) | 14 |
|
| Current Rating (mA) | 50 |
|
| Contact Resistance (mΩ) | 100 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Mounting Style | Surface Mount |
|
| Termination | Gull Wing |
|
| Orientation | Vertical |
|
| Lifecycles | 500000 |
|
| Illumination | Yes |
|
| Illumination Color | White |
|
| Operating Temp. (°C) | -40 ~ 85 |
|
| IP Rating | No IP Rating |
|
| Series | TS38 |
|
