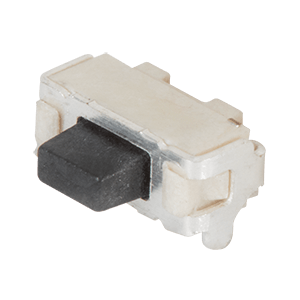

TS33-46-35-BK-160-H-SMT-TR
4.6 x 1.8 mm; 3.5 mm Actuator Height Off PCB; 160 gf; Black; Halogen Free; Right Angle; Surface Mount; SPST; Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Tactile |
|
| Circuit | SPST |
|
| Actuator Height (mm) | 1.25 |
|
| Actuator Travel (mm) | 0.2 |
|
| Operating Force (gf) | 160 ± 50 |
|
| Voltage Rating (Vdc) | 12 |
|
| Current Rating (mA) | 50 |
|
| Contact Resistance (mΩ) | 100 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Mounting Style | Surface Mount |
|
| Termination | Gull Wing |
|
| Lifecycles | 100000 |
|
| Illumination | No |
|
| Illumination Color | None |
|
| Operating Temp. (°C) | -20 ~ 70 |
|
| Dimensions LxWxH (mm) | 4.6 x 1.85 x 3.5 |
|
| Dimensions LxWxH (in) | 0.181 x 0.072 x 0.088 |
|
| Series | TS33 |
|
