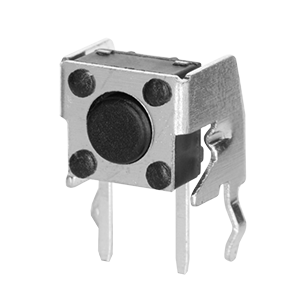

TS11-674-135-BK-160-RA-D
6 x 7.4 mm; 13.5 mm Actuator Height Off PCB; 160 gf; Black; Right Angle; Through Hole; SPST; Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Tactile |
|
| Circuit | SPST |
|
| Actuator Height Off PCB (mm) | 13.5 |
|
| Actuator Travel (mm) | 0.25 |
|
| Operating Force (gf) | 160 ± 50 |
|
| Voltage Rating (Vdc) | 12 |
|
| Current Rating (mA) | 50 |
|
| Contact Resistance (mΩ) | 100 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Mounting Style | Through Hole |
|
| Lifecycles | 80000 |
|
| Termination | PC Pin |
|
| Orientation | Right Angle |
|
| Dimensions LxWxH (mm) | 6 x 7.4 x 13.5 |
|
| Illumination | No |
|
| Dimensions LxWxH (in) | 0.24 x 0.29 x 0.53 |
|
| Illumination Color | None |
|
| Operating Temp. (°C) | -30 ~ 80 |
|
| Series | TS11 |
|
