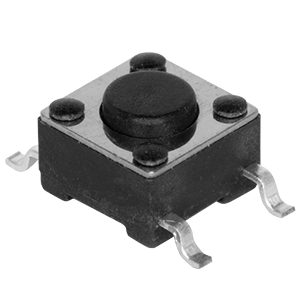

TS04-66-55-BK-160-SMT-TR
6 x 6 mm, 5.5 mm Actuator Height Off PCB, 160 gf, Black, Surface Mount, SPST, Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Circuit | SPST |
|
| Actuator Height Off PCB (mm) | 5.5 |
|
| Current Rating (mA) | 50 |
|
| Operating Force (gf) | 160 ± 50 |
|
| Voltage Rating (Vdc) | 12 |
|
| Mounting Style | Surface Mount |
|
| Termination | Gull Wing |
|
| Orientation | Vertical |
|
| Actuator Travel (mm) | 0.25 |
|
| Lifecycles | 80000 |
|
| Contact Resistance (mΩ) | 100 |
|
| Illumination | No |
|
| Illumination Color | None |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Operating Temp. (°C) | -30 ~ 80 |
|
| Series | TS04 |
|
| Switch Type | Tactile |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
