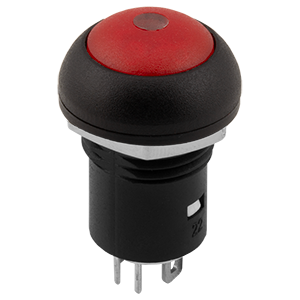

PB3L-A-RR-D-67
SPST, Off-On, 12 mm, Panel Mount, Red Illuminated, IP67, Push Button Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Push Button |
|
| Circuit | SPST |
|
| Switch Function | Off-On |
|
| Voltage / Current Rating (Vac) | 125 Vac @ 1.5 A |
|
| Voltage / Current Rating (Vdc) | 24 Vdc @ 0.5 A |
|
| Cap Style | No Cap |
|
| Mounting Style | Panel Mount |
|
| Termination | Solder Lug |
|
| Actuator Type | Round Button Domed |
|
| Actuator Marking | None |
|
| Push Button Color | Red |
|
| Operating Force (gf) | 300 ± 50 |
|
| Contact Resistance (mΩ) | 50 |
|
| Insulation Resistance (MΩ at 500 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 1000 |
|
| Washable | No |
|
| Illumination | Yes |
|
| Illumination Color | Red |
|
| Operating Temp Range (°C) | -20 ~ 85 |
|
| Panel Cutout Dimensions (mm) | 12 |
|
| Dimensions LxWxH (mm) | 11.8 x 11.8 x 24.3 |
|
| Dimensions LxWxH (in) | 0.46 x 0.46 x 0.96 |
|
| Series | PB3 |
|
| IP Rating | IP67 |
|
