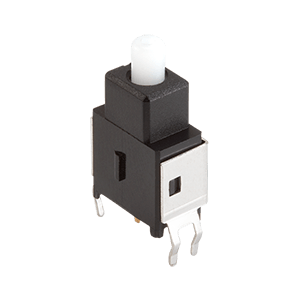

MPB01-1C00-S-D
SPDT, Through Hole, 0 mm Push, On-(ON), Straight Terminal, 2.54 mm Pitch, Push Button Switch
Specifications
| Type | Description | |
|---|---|---|
| Circuit | SPDT |
|
| Switch Type | Push Button |
|
| Switch Function | On-(ON) |
|
| Pole | Single |
|
| Push Length (mm) | 0 |
|
| Pitch (mm) | 2.54 |
|
| Cap Style | No Cap |
|
| Mounting Style | Through Hole |
|
| Voltage Rating (Vdc) | 28 |
|
| Current Rating (mA) | 14 |
|
| Operating Force (gf) | 250 ± 100 |
|
| Contact Resistance (mΩ) | 50 |
|
| Insulation Resistance (MΩ at 500 Vdc) | 500 |
|
| Termination | Straight |
|
| Withstanding Voltage (Vac for 1 min) | 500 |
|
| Washable | No |
|
| Dimensions LxWxH (mm) | 9.8 x 5.8 x 13.1 |
|
| Dimensions LxWxH (in) | 0.39 x 0.23 x 0.52 |
|
| Series | MPB01 |
|
