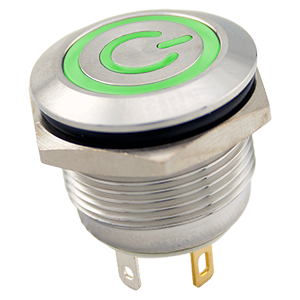

PBM6-M-GR12-P-F-SS-67
SPST-NO, Off-(On), 19 mm, Flat, Stainless Steel, 12 V Green Illuminated, Power Logo, Panel Mount, IP67, Anti-Vandal Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Anti-Vandal |
|
| Switch Function | Off-(On) |
|
| Circuit | SPST-NO |
|
| Actuator Type | Round Button Flat |
|
| Actuator Marking | Power Emblem |
|
| Housing Material | Stainless Steel |
|
| Mounting Style | Panel Mount |
|
| Termination | Solder Lug |
|
| Illumination | Yes |
|
| Illumination Color | Green |
|
| Illumination Voltage (Vdc) | 12 |
|
| Panel Cutout Dimensions (mm) | 19 |
|
| Voltage / Current Rating (Vac) | 250 Vac @ 6 A |
|
| Voltage / Current Rating (Vdc) | 36 Vdc @ 2 A |
|
| Operating Force (gf) | 600 ± 200 |
|
| Contact Resistance (mΩ) | 50 |
|
| Insulation Resistance (MΩ at 500 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 1500 |
|
| Washable | No |
|
| Operating Temp Range (°C) | -20 ~ 85 |
|
| Dimensions LxWxH (mm) | 22 x 22 x 25.8 |
|
| Dimensions LxWxH (in) | 0.86 x 0.86 x 0.99 |
|
| IP Rating | IP67 |
|
| Series | PBM6 |
|
