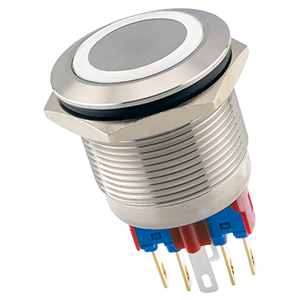

PBM13-L-WT12-F-SS-67
SPDT, 22 mm, Flat, Locking, Stainless Steel, 12 V White Illuminated, Panel Mount, IP67, Anti-Vandal Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Anti-Vandal |
|
| Circuit | SPDT |
|
| Switch Function | Off-On |
|
| Panel Cutout Dimensions (mm) | 22 |
|
| Voltage / Current Rating (Vac) | 250 Vac @ 5 A |
|
| Voltage / Current Rating (Vdc) | 36 Vdc @ 2 A |
|
| Withstanding Voltage (Vac for 1 min) | 1000 |
|
| Contact Resistance (mΩ) | 50 |
|
| Insulation Resistance (MΩ at 500 Vdc) | 100 |
|
| Operating Force (gf) | 600 ± 200 |
|
| Mounting Style | Panel Mount |
|
| Termination | Solder Lug |
|
| Actuator Type | Round Button Flat |
|
| Actuator Marking | None |
|
| Housing Material | Stainless Steel |
|
| Illumination | Yes |
|
| Illumination Voltage (Vdc) | 12 |
|
| Illumination Color | White |
|
| Operating Temp Range (°C) | -25 ~ 70 |
|
| Dimensions LxWxH (mm) | 25 x 25 x 41.1 |
|
| Dimensions LxWxH (in) | 0.98 x 0.98 x 1.61 |
|
| Washable | No |
|
| IP Rating | IP67 |
|
| Series | PBM13 |
|
