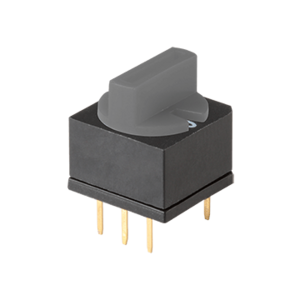

RDS6-10S-1065-1-D
10 Position, Through Hole, 2.54 mm Pitch, Flush Cross Actuator w/ Cap, DIP Switch
Specifications
| Type | Description | |
|---|---|---|
| Number of Positions | 10 |
|
| Actuator Type | Rotary |
|
| Actuator Level | Flush |
|
| Actuator Style | Cross |
|
| Pitch (mm) | 2.54 |
|
| Mounting Style | Through Hole |
|
| Switching Voltage Rating (Vdc) | 42 |
|
| Non-Switching Voltage Rating (Vdc) | 42 |
|
| Non-Switching Current Rating (mA) | 200 |
|
| Switching Current Rating (mA) | 150 |
|
| Termination | PC Pin |
|
| Cap | Yes |
|
| Orientation | Horizontal |
|
| Dimensions LxWxH (mm) | 10 x 10 x 6.5 |
|
| Dimensions LxWxH (in) | 0.393 x 0.393 x 0.256 |
|
| Switch Type | DIP |
|
| Washable | No |
|
| Series | RDS6-1065-D |
|
