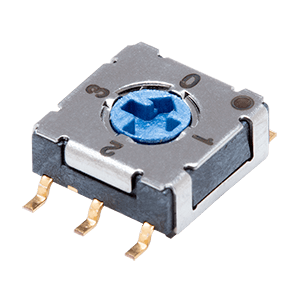

RDS-16S-7229-C-SMT-TR
16 Position, Surface Mount, 5.08 mm Pitch, IP67, Flat Rotary Actuator, DIP Switch
Specifications
| Type | Description | |
|---|---|---|
| Number of Positions | 16 |
|
| Actuator Type | Rotary |
|
| Actuator Level | Flat |
|
| Switch Type | DIP |
|
| Actuator Style | Cross |
|
| Pitch (mm) | 5.08 |
|
| Switching Voltage Rating (Vdc) | 50 |
|
| Non-Switching Voltage Rating (Vdc) | 50 |
|
| Non-Switching Current Rating (mA) | 100 |
|
| Switching Current Rating (mA) | 100 |
|
| Mounting Style | SMT |
|
| Termination | Gull Wing |
|
| Orientation | Horizontal |
|
| Cap | No |
|
| Washable | No |
|
| Dimensions LxWxH (mm) | 7.2 x 7.2 x 2.9 |
|
| Dimensions LxWxH (in) | 0.28 x 0.28 x 0.11 |
|
| IP Rating | IP67 |
|
| Series | RDS-7229-SMT |
|
