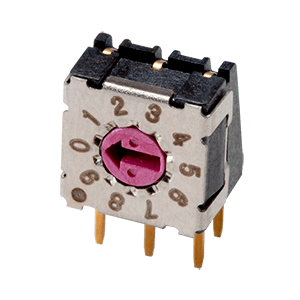

RDS-10S-74R-254-D
10 Position, Right Angle, Through Hole, 2.54 mm Pitch, Flat Rotary Actuator, DIP Switch
Specifications
| Type | Description | |
|---|---|---|
| Actuator Level | Flat |
|
| Number of Positions | 10 |
|
| Actuator Type | Rotary |
|
| Pin | Short |
|
| Dimensions LxWxH (in) | 0.29 x 0.29 x 0.23 |
|
| Switch Type | DIP |
|
| Pitch (mm) | 2.54 |
|
| Dimensions LxWxH (mm) | 7.4 x 7.4 x 5.8 |
|
| Switching Voltage Rating (Vdc) | 42 |
|
| Non-Switching Voltage Rating (Vdc) | 42 |
|
| Non-Switching Current Rating (mA) | 400 |
|
| Switching Current Rating (mA) | 100 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Vertical |
|
| Cap | No |
|
| Washable | No |
|
| IP Rating | IP67 |
|
| Series | RDS-74R-254 |
|
