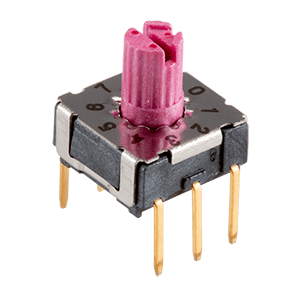

RDS-10S-74365-45A-D
10 Position, Through Hole, 5.08 mm Pitch, Raised Rotary Actuator, DIP Switch
Specifications
| Type | Description | |
|---|---|---|
| Number of Positions | 10 |
|
| Actuator Type | Rotary |
|
| Actuator Level | Raised |
|
| Actuator Style | Arrow |
|
| Switch Type | DIP |
|
| Pitch (mm) | 5.08 |
|
| Pin | Short |
|
| Switching Voltage Rating (Vdc) | 42 |
|
| Non-Switching Voltage Rating (Vdc) | 42 |
|
| Non-Switching Current Rating (mA) | 400 |
|
| Switching Current Rating (mA) | 100 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Horizontal |
|
| Cap | No |
|
| Bottom | Convex |
|
| Washable | No |
|
| Dimensions LxWxH (mm) | 7.4 x 7.4 x 3.65 |
|
| Dimensions LxWxH (in) | 0.29 x 0.29 x 0.14 |
|
| IP Rating | IP67 |
|
| Series | RDS-74365-45A |
|
