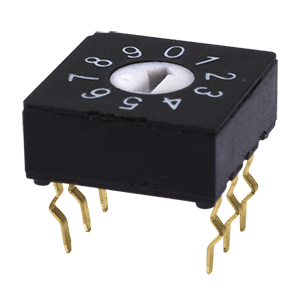

RDS-10S-1045-D
10 Position, Through Hole, 2.54 mm Pitch, Rotary Actuator, Long Pins, DIP Switch
Specifications
| Type | Description | |
|---|---|---|
| Number of Positions | 10 |
|
| Actuator Type | Rotary |
|
| Actuator Level | Flat |
|
| Actuator Style | Arrow |
|
| Switch Type | DIP |
|
| Pitch (mm) | 2.54 |
|
| Bottom | Convex |
|
| Pin | Long |
|
| Switching Voltage Rating (Vdc) | 24 |
|
| Non-Switching Voltage Rating (Vdc) | 50 |
|
| Non-Switching Current Rating (mA) | 100 |
|
| Switching Current Rating (mA) | 25 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Horizontal |
|
| Cap | No |
|
| Washable | No |
|
| Dimensions LxWxH (mm) | 10 x 10 x 4.5 |
|
| Dimensions LxWxH (in) | 0.39 x 0.39 x 0.18 |
|
| Series | RDS-1045 |
|
